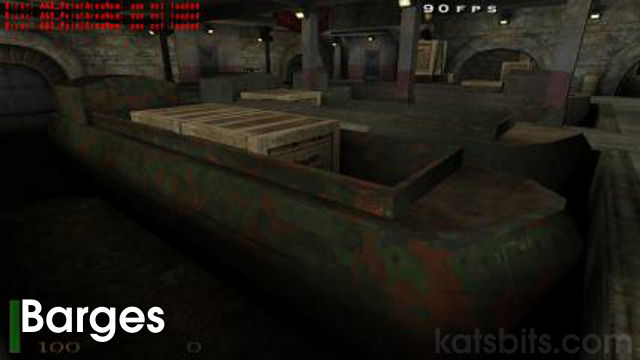

WW2 narrow boat/Canal barge (*.ase)

The following "WW2 Narrowboat/barge Models" download is for games or other interative mediums supporting the ASE format. Includes meshes and textures.

ASE Model Details

• author – ken ‘kat’ beyer
• rel’ date – April 05
• name – Narrowboats/Canal Barges
• pk3 file – ase_kt_barge.zip
• info – A set of cargo barges (narrow boats) as used in the UK and Europe’s ‘narrow’ waterways and canals. In various colours and markings; textures 512×512.
  • European camouflage
  • German Grey
  • Field Green
  • White stripe

  Pack also includes a dock side rope tie and corner bumper; textures 256×256.

  How to use

  Becasue mappers/MOD’ers for non-quake 3 games are using these assets the files are just included as a ZIP file with relative file paths. To use them in Quake 3 engined games (RtCW, MoH, CoD) simply rename the file from .zip to .pk3.

  Changing the texture used on the model/s

  The files are ASE models, (which is a text based format) so the texture/shader path can easily be edited using notepad you don’t need to use any 3D software, just open a file into notepad, find the texture path references & edit those to ‘point’ to your folders / textures / shaders, re-save to a location of your choice and then load ready textured into Radiant.

  Autoclip

  If you want to use ‘auto clipping’ on the models instead of applying manual Player-clipping in Radiant you’ll need to amend the included shader or write your own; see below for an example of a ‘basic’ shader.

  warning : be warned that if you use auto clipping extensively you’ll be generating a colossal amount of extra brush faces that count towards the total brushcount limit in Q3 engined games… watch out for max_map_ errors.

  //barge with no markings
  models\mapobjects\kt_barge\nomark
  {

  qer_editorimage models\mapobjects\kt_barge\kt_barge_nomark.tga
  q3map_forcemeta
  q3map_nonplanar
  // q3map_shadeangle 79 //OPTIONAL*
  // q3map_clipmodel //OPTIONAL

  {
  map $lightmap
  rgbGen identity
  }

  {
  map models\mapobjects\kt_barge\kt_barge_nomark.tga
  blendFunc GL_DST_COLOR GL_ZERO
  rgbGen identity
  }

  }

  *note : using q3map_shadeangle on models that have specific smoothing groups can have some undesirable effects, esp on more ‘organically’ shaped objects, so this is commented out by default for this shader. If you want to make your own specific texture for the game or theme you have, contact KatsBits with your request and we’ll dig out the texture template you can use to create your own artwork with.

• polycount – Barge @ 172 each (4) misc @ c.50 (2)

Download Locations

zip file [c.1.5MB]

• Download from KatsBits


German Grey

European Front

Field Green

Cargo Hold

White Stripe
